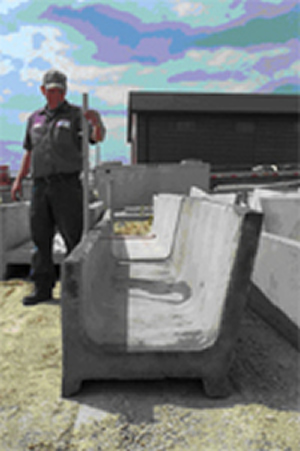

Fenceline Feed Bunks

                       Standard    High Cap.  Super

Length:                 8 ft.            8 ft.         8 ft.
Width OD:              32"             37"         37"
Height: Front        23"             23"         23"
            Back:        31"              31"         37"
Trough Depth:      15"              15"         15"
Trough Width:      19"              24"         28"
Wall Thickness:    3"                 3"         3.5"
Weight:              2000#         2200#       4000#

H-STYLE FEED BUNKS

                    Standard  Narrow   Hicap

Length:              8'                  8'              8'
Width OD:         56”                52"            60"
Height:              28”                29"            29"
Trough Depth:  10”                15"            15"
Wall Thickness: 3.5”             3.5"          3.5"
Weight:            3350#         3000#      3000#

More Feed Bunk Picures

Freestanding T-Walls

These walls are available in any length up to 20’ per section. Standard height is 48”, they are also available 36” or 60” tall. The weight of the walls are 220 lbs/ft.
(based on 48” tall wall).

Bunker Silo/Commodity Storage

L-PANEL BUNKER
These panels are poured with 6000 lb. p.s.i. concrete mix and steel reinforced. The walls come in 8 ft. and 10 ft. tall sections and are 8 ft. wide. Corner sections available for making an end wall. The joints are bolted and sealed and can be dismantled to be relocated if needed.

T-BUNKER PANELS

These panels are used as divider walls in the bunker silo unit.  They can be 8, 10 or 12 ft. tall.

T-Bunker Panel Pictures

Bunker Silo Tonnage Chart

L-PANEL BUILDING
The L-panels can also be used to construct a commodity storage building such as this.

Cattle Guard

Our portable cattle guard is made of 2.5 inch steel tubing with I-beam construction. It is 5 foot in depth and can be 10 to 16 in length.

Manure Storage/Pit Tops

Manure pit constructed with 5’ tall t-walls

Manure pit constructed with 8’ tall L-panels

Parlor Basements/Subways

Precast truss decking for a dairy parlor.

Precast panels and beams in a dairy parlor.
